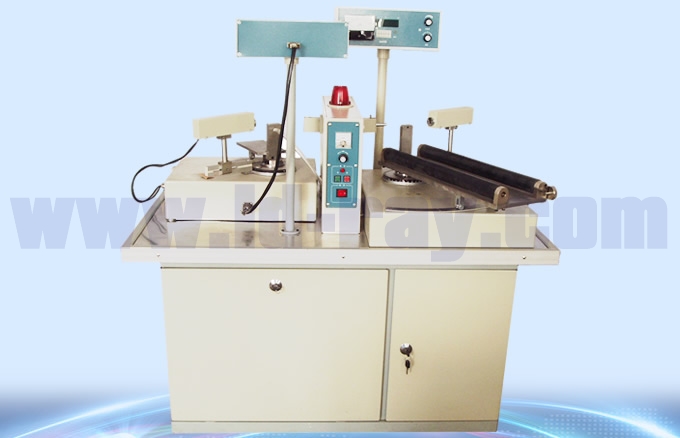

Designed for customer who mainly measures big diameter, long dimension crystal round plate and crystal bar, it has double working position.
Standard configuration: GA, GC angular instrument
1、One side can be used for measure 111,100 surface of 3-8inch crystal round plate and angle of crystal bar surface (110).
2、The other side is used for measure angle of crystal bar(111,100) surface which diameter of 5-8inch and length of 800mm.
Main parameters:
|
Items |
Parameters |
|
Crystal bar diameter |
5---8inch、max 11inch |
|
Crystal bar length |
800mm |
|
Sample area |
43width×112height mm |
|
Orientation precision |
±30″ |
|
Displayer |
Outer vertical type |
|
Display way |
θ：degree；minute；second；minimum reading 10″ |
|
Technical targets |
Satisfied with YX-2 targets |
|
Dimension |
1210×810×1420 mm |
|
